产品特点（Product Features):

1、功率范围：1000W-2500W 1、Power Range:1000W-2.5KW

2、工作电压：＜3000V 2、Voltage Range:≤3000V

3、额定阻值范围：5Ω-100Ω 3、Resistance Range:5Ω-100Ω

4、耐压范围：AC5000V 50Hz/5S 4、Dielectric Strength:AC5000V 50Hz/5s

5、IP等级：IP00 5、IP Protection:IP00

6、优势：耐电压高 6、Advantage:High voltage proof

7、劣势：IP等级低 7、Disadvantage:IP grade low

产品介绍（Product Profile):

RPHP 系列高压电阻采用的是螺旋状瓷管作为骨 架，饶后再把用合金材料绕制成的螺旋状电阻丝绕在 瓷管螺旋巢内。具有良好的散热功效，安装方便。该 产品适用于高压设备放电、模拟负荷试验等。

RPHP Series of high-pressure resistance is used in spiral porcelain tube as a skeleton, Rao after the spiral resistance wire wound made by alloy material around the ceramic tube spiral nest. Has the good effect of heat radiation,convenient installation. The products are suitable for the simulation of high voltage equipment discharge, load test.

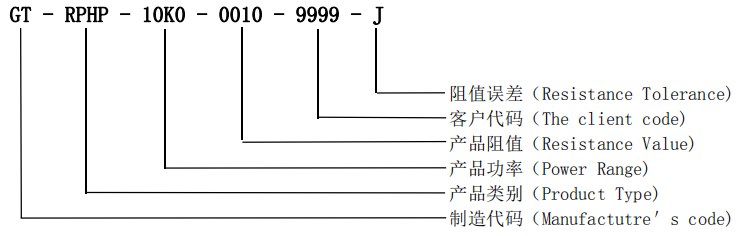

产品识别码（Product Identification Code)

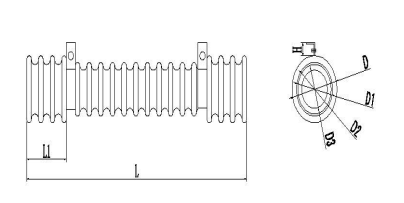

产品尺寸表（Product Size):

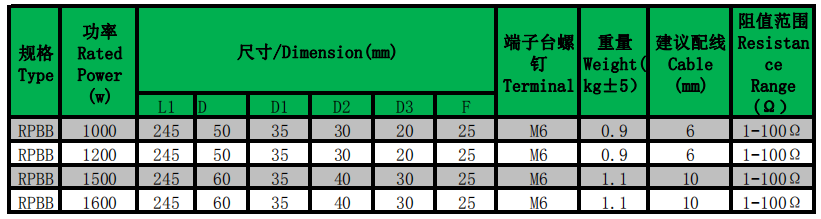

选型表(Selection Table):
