产品特点（Product Features):

1、额定功率范围：2.4KW-20KW 1、Power Range:2.4KW-20KW

2、工作电压范围：≤1000V 2、Voltage Range:≤1000V

3、额定阻值范围：1Ω-1KΩ 3、Resistance Range:1Ω-1KΩ

4、耐压范围：AC3KV 50HZ/5S 4、Dielectric Strength:AC3KV 50Hz/5s

5、IP等级：IP20/IP23 5、P Protection:IP20/IP23

6、优势：较恶劣工作环境 6、Advantage:Can be used in harsh working environment

7、劣势：工作电压＜800V 7、Disadvantage:The working voltage is less than 800V

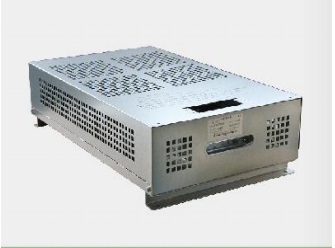

产品介绍（Product Profile):

RPBB 系列产品是由波纹电阻器组成的电阻箱，外观 美丽大方，安装方便，具有良好的安全性和散热能力 。适用于大功率、大电流的制动设备、电梯、起重等 变频器的能耗制动回路中。

RPBB Series of products is composed of corrugated resistor resistance box, beautiful and elegant appearance, convenient installation, good safety and heat dissipation capability. Suitable for high power, high current braking equipment,elevator, energy consumption braking circuit weight of converter.

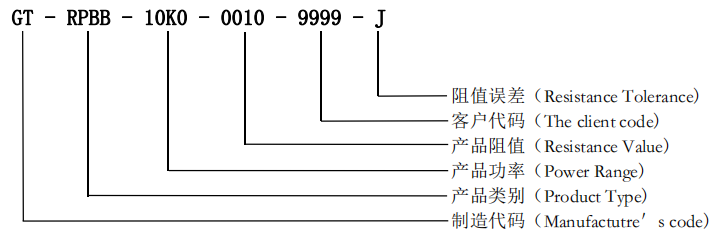

产品识别码（Product Identification Code)

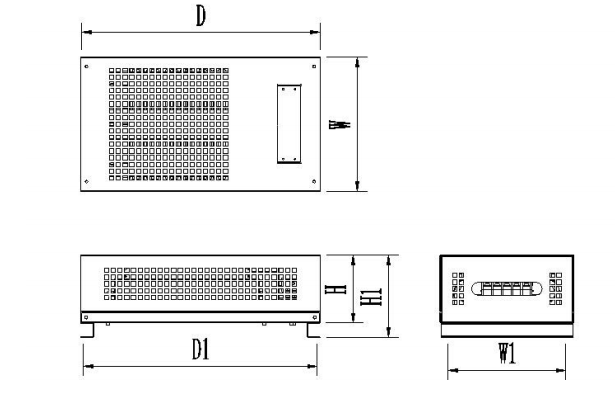

产品尺寸表（Product Size):

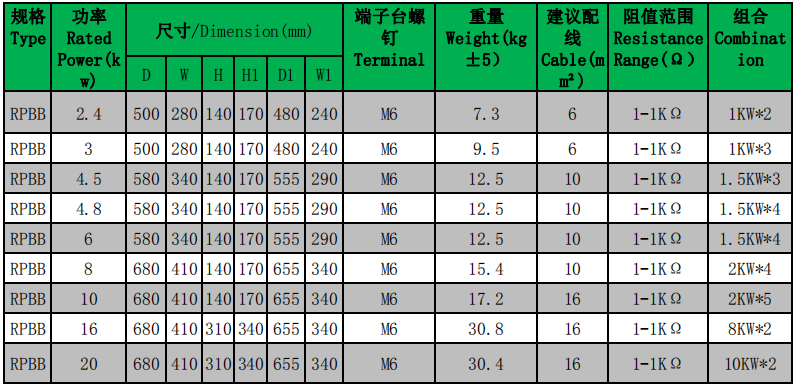

选型表(Selection Table):
