产品特点（Product Features):

1、功率范围：30KW-200KW 1、Power Range:30KW-200KW

2、工作电压范围：≤1200V 2、Voltage Range:≤1200V

3、额定阻值范围：0.5-100R 3、Resistance Range:0.5Ω-100Ω

4、耐压范围：AC3KV 50HZ/5S 4、Dielectric Strength:AC3KV 50Hz/5s

5、IP等级IP00-IP23 5、P Protection:IP00/IP23

6、优势：功率能做大 6、Advantage:Power can grow

7、劣势：抗震动性差 7、Disadvantage:Anti vibration difference

产品介绍（Product Profile):

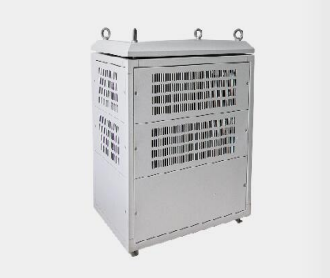

RPTC 系列产品是由波纹电阻器组成的电阻柜，适用于大功率，大电流的制动设备，电梯、起重变频及 模拟负载等应用中。

RPTC Series of products is composed of corrugated resistor resistor cabinet, suitable for high power, high current braking equipment, elevators, lifting frequency conversion and the analog load application.

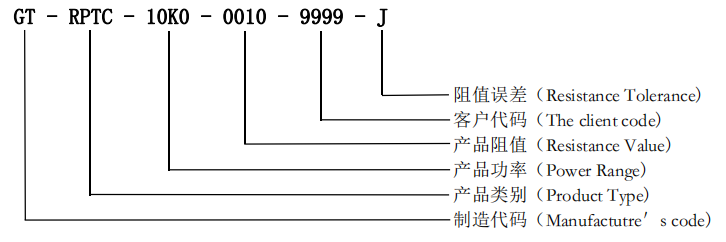

产品识别码（Product Identification Code)

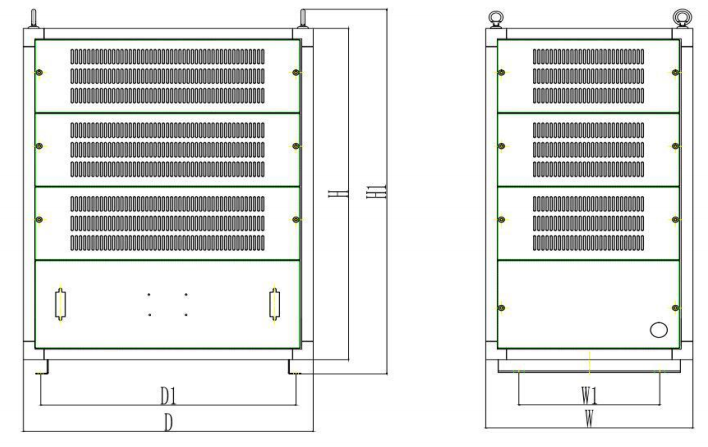

产品尺寸表（Product Size):

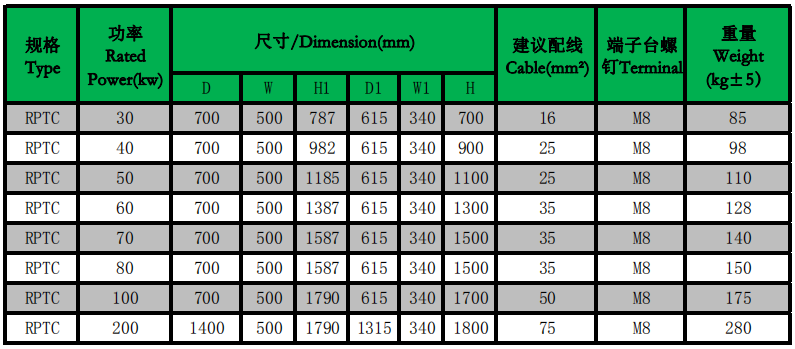

选型表(Selection Table):
