产品特点（Product Features):

1、功率范围：5KW-100KW 1、Power Range:5KW-100KW

2、工作电压：≤1140V 2、Voltage Range:≤1140V

3、额定阻值范围：0.1Ω-5Ω 3、Resistance Range:0.1Ω-5Ω

4、耐压范围：AC3KV 50HZ/5S 4、Dielectric Strength:AC3KV 50Hz/5s

5、IP等级：IP00-IP54 5、IP Protection:IP00/IP54

6、优势：使用寿命长 6、Advantage:Long service life

7、劣势：阻值范围小 7、Disadvantage:A small range of resistance

产品介绍（Product Profile):

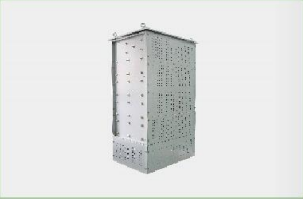

RPCS 系列不锈钢电阻柜采用的是用SUS304、 SUS316等耐腐蚀、耐高温材料锻压成的电阻片。具有 容量大、耐压高、使用寿命长等优点，主要作为交流 电动机的启动、制动与调速。

RPCS Series stainless steel resistor box is used with SUS304, SUS316 and other corrosion resistant, high temperature resistant material forging into resistor. Has the advantages of large capacity, high pressure resistance, long service life, is mainly used as AC motor starting, braking and speed regulating.

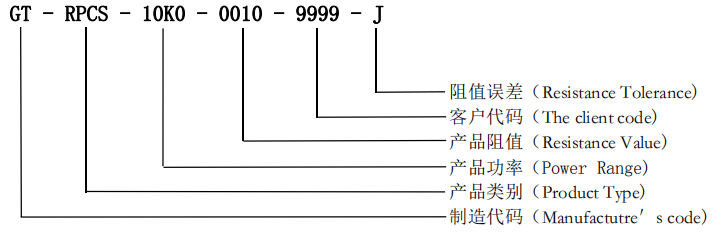

产品识别码（Product Identification Code)

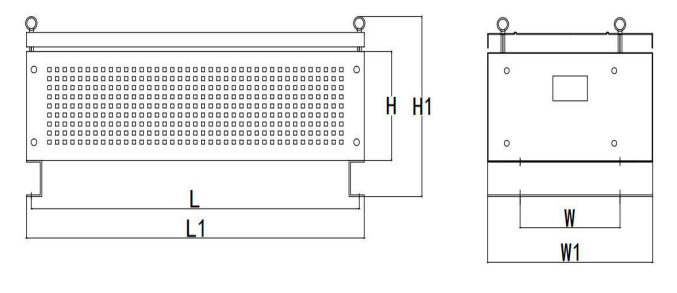

产品尺寸表（Product Size):

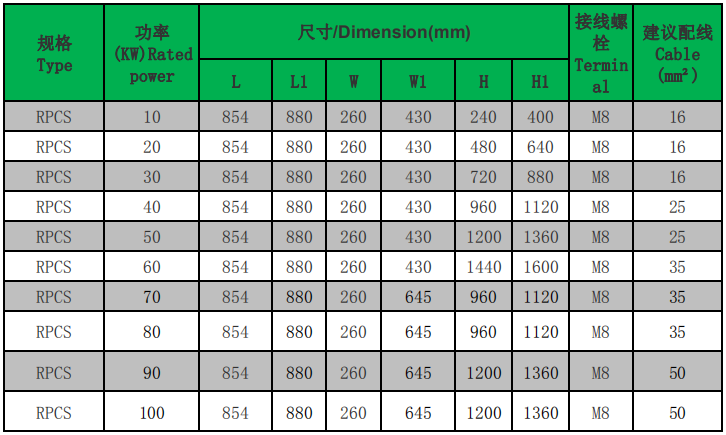

选型表(Selection Table):
