产品特点（Product Features):

1、功率范围：2KW-10KW 1、Power Range:2KW-10KW

2、工作电压：≤1000V 2、Voltage Range:≤1000V

3、额定阻值范围：5Ω-1KΩ 3、Resistance Range:5Ω-1KΩ

4、耐压范围：AC2500V 50Hz/5S 4、Dielectric Strength:AC2500V 50Hz/5s

5、IP等级：IP00-IP54 5、IP Protection:IP00/IP54

6、优势：IP等级较高 6、Advantage:The higher IP level

7、劣势：电压不是很高 7、Disadvantage:Voltage is not very high

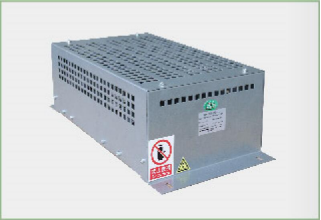

产品介绍（Product Profile):

RPDB 系列加热管电阻箱是由电热管电阻器组合而成 的电阻箱，适用于大功率，试验设备、电梯、起重等 变频器的能耗制动回路中。

RPDB Series of heating pipe resistance box is the resistance box is composed of electric heating tube resistor combination,suitable for high power, energy consumption braking circuit test equipment, elevator, crane inverter in.

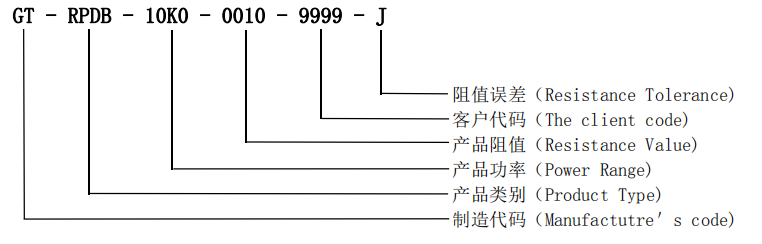

产品识别码（Product Identification Code)

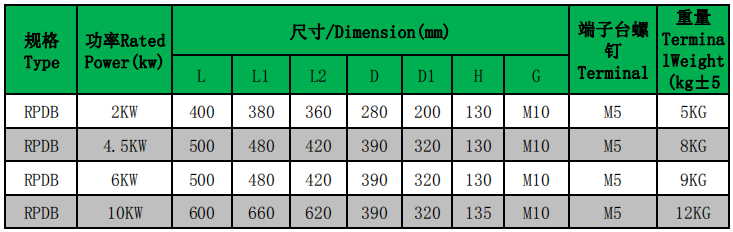

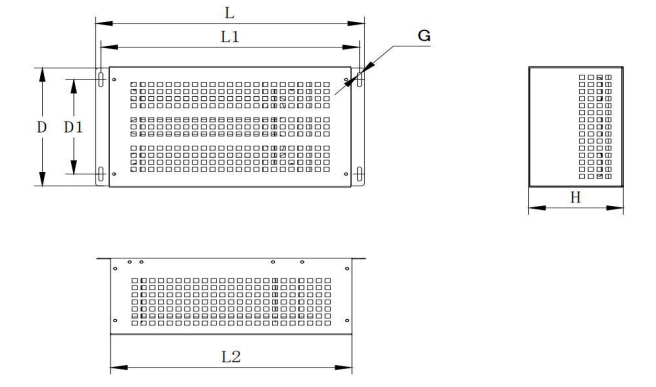

产品尺寸表（Product Size):

选型表(Selection Table):
