产品特点（Product Features):

1、安全性：具有IGBT短路击穿脱扣功能，可以有效地防止因IGBT击穿，电阻器长时间过负荷运行而 引起的火险隐患。

2、广泛性：特殊设计可以使用普通电阻，不必选择无感电阻。斩波电压DC630V-DC760V可调，适用 于各种低压变频器。

3、经济性：性价比高，品质可与同类进口产品相媲美，价格较低，是变频器刹车、制动回路中经济 适用的回路中经济、实用的配套产品。

1、 security: with IGBT short circuit breakdown release function, can effectively prevent IGBT breakdown, resistorlong time overload operation caused by the fire hazard.

2、extensive: special design can use the common resistance, need not choose a noninductive resistance. The chopper voltage DC630V-DC760V adjustable, applicable to all kinds of low voltage converter.

3、 the economy: the high ratio of performance to price, quality can be comparable with similar imported products,the price is low, frequency converter brake, brake circuit in the loop economic application of economic, practicalaccessory products.

产品介绍（Product Profile):

RPBU 系列制动单元的作用是将电机在减速过程中产 生的再生能量，以热能的形式消耗在制动电阻上，以 产生足够的制动转矩，从而改善变频器的制动性能及 缩短变频器的制动时间。

RPBU Series brake unit is the role of the renewable energy generated by the motor in the slowing down process, in the form of heat energy consumed by braking resistor, to generate sufficient braking torque, thereby improving thebraking performance of converter and inverter braking time shorten.

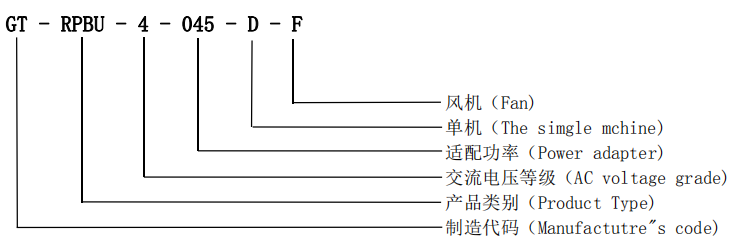

产品识别码（Product Identification Code)

产品尺寸表（Product Size):

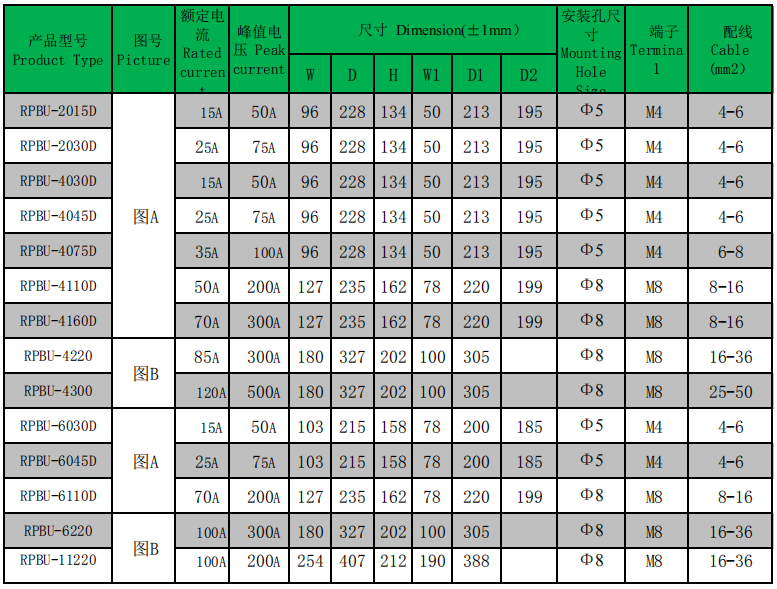

选型表(Selection Table):
