性能指标及参数（The performance index and parameters):

1、额定电压：440/250V AC

2、试验电压：线至线1500V DC，线至地1500V AC/2500V DC

3、工作频率：50/60Hz

4、温度范围：-25--+80℃

5、绝缘电阻：线至地≥1500MΩ

1、Rated voltage: 440/250 v AC

2、test voltage: 1500 v DC line to line Line to AC 1500 v / 1500 v DC

3、working frequency: 50/60 hz

4、temperature range: 25 - + 80 ℃

5、Insulation resistance: line to 1500 m Ω or higher

产品简述（Product Profile):

NF 滤波器 该类产品具有良好的干扰抑制能力，置于变频器输出端，能有 效减少变频器产生的电磁干扰。

NF This category of products has superior capability of interference containment.It si usually installed at inverter’s output terminal and able to minimize the electromagnetic interference generated by inverter.

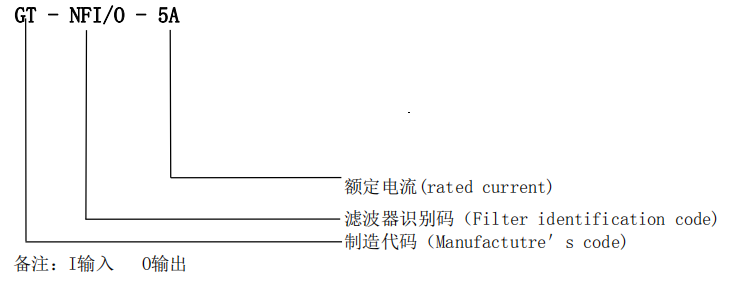

产品识别码（Product Identification Code)

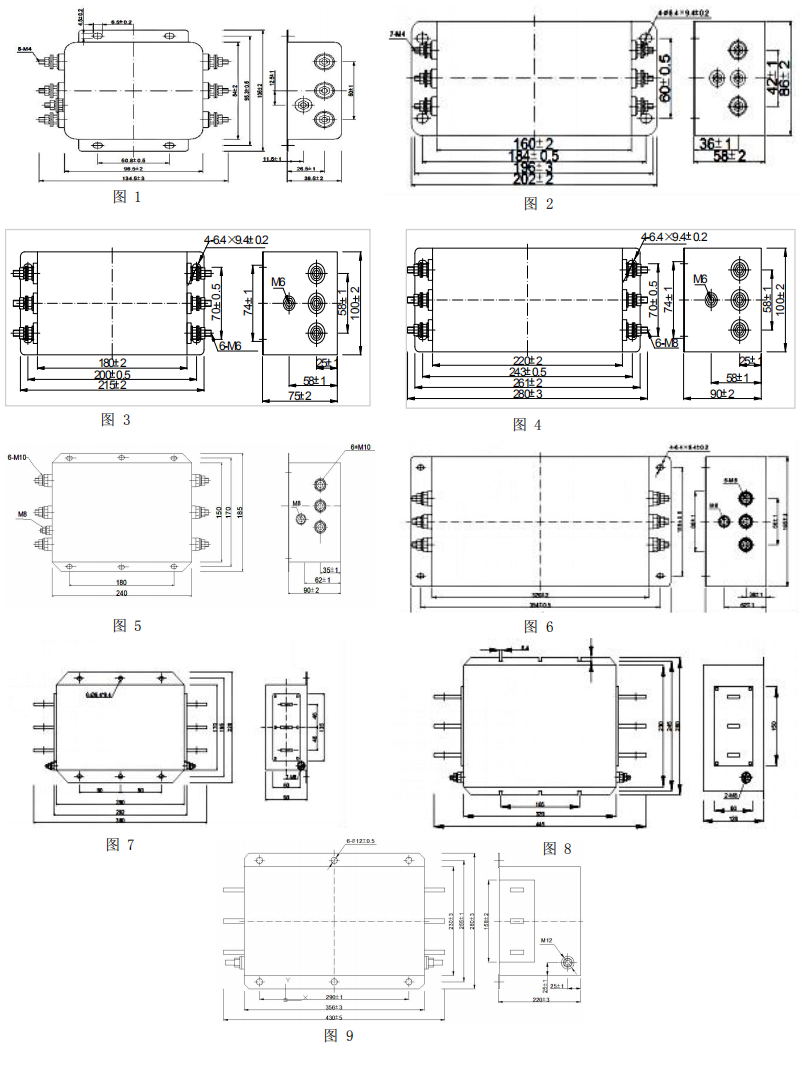

产品尺寸表（Product Size):
