产品特点（Product Features):

1、功率范围：100W-5KW 1、Power Range:100W-5KW

2、工作电压：≤1.2KV 2、Voltage Range:≤1.2KV

3、额定阻值范围：0.1Ω-5Ω 3、Resistance Range:0.1Ω-5Ω

4、耐压范围：AC2500V 50Hz/5S 4、Dielectric Strength:AC2500V 50Hz/5s

5、IP等级：IP00-IP54 5、IP Protection:IP00-IP54

6、优势：IP等级较高 6、Advantage:The higher IP level

7、劣势：工作电压不是很高 7、Disadvantage:Voltage is not very high

产品介绍（Product Profile):

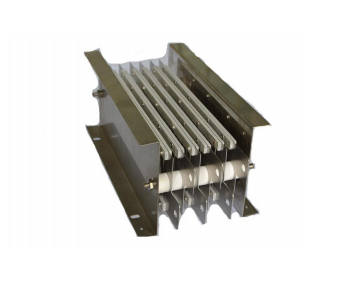

RPBS 系列电阻箱是用不锈钢片叠加而成，具有容 量大、耐压高、耐腐蚀、使用寿命长等优点。适用于 交流50Hz，电压至1140V及直流电压至1000V一下的电 路中，主要作为发动机起动、制动及调速等作用。

RPBS Series resistance box is made of stainless steel sheets stacked together, has the advantages of large capacity, high pressure resistance, corrosion resistance, long service life etc.. Apply to AC 50Hz, the circuit voltage to 1140V and1000V DC voltage to the look, mainly as an engine starting, braking and speed regulating effect.

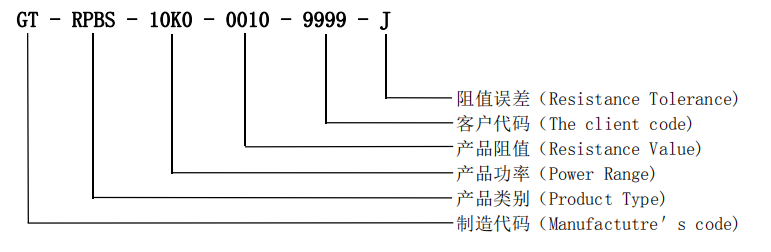

产品识别码（Product Identification Code)

备注：H=3% J=5% K=10%
